WSOR Spring Creek Arch

Stone Arch Bridge over Spring Creek
Lodi, Columbia County, Wisconsin

Click the Photo Above to See All Photos of This Bridge!
Name WSOR Spring Creek Arch
Built By Chicago & North Western Railway
Contractor Unknown
Currently Owned By State of Wisconsin
Currently Operated By Wisconsin & Southern Railroad
Length 48 Feet Total, 24 Foot Spans
Width 2 Tracks, 1 In Use
Height 20 Feet (Estimated)
Superstructure Type Stone Arch
Substructure Type Stone Masonry
Date Built 1888, Widened 1896
Traffic Count 2 Trains/Day (Estimated)
Current Status In Use
WSOR Bridge Number 302.5
Significance Local Significance
Documentation Date March 2015
A brief history of the Chicago & North Western route from Beloit to Winona:


08/20/21


This historic Stone Arch crosses Spring Creek in Lodi.
The bridge has a recorded build date of 1888, although further research shows that it was expanded in 1896.
The arch is massive, one of several along this route featuring the double arch design.
However, because of the brush, it is obscured. Another large stone arch exists near this bridge, within a hundred feet.

Historic Photo

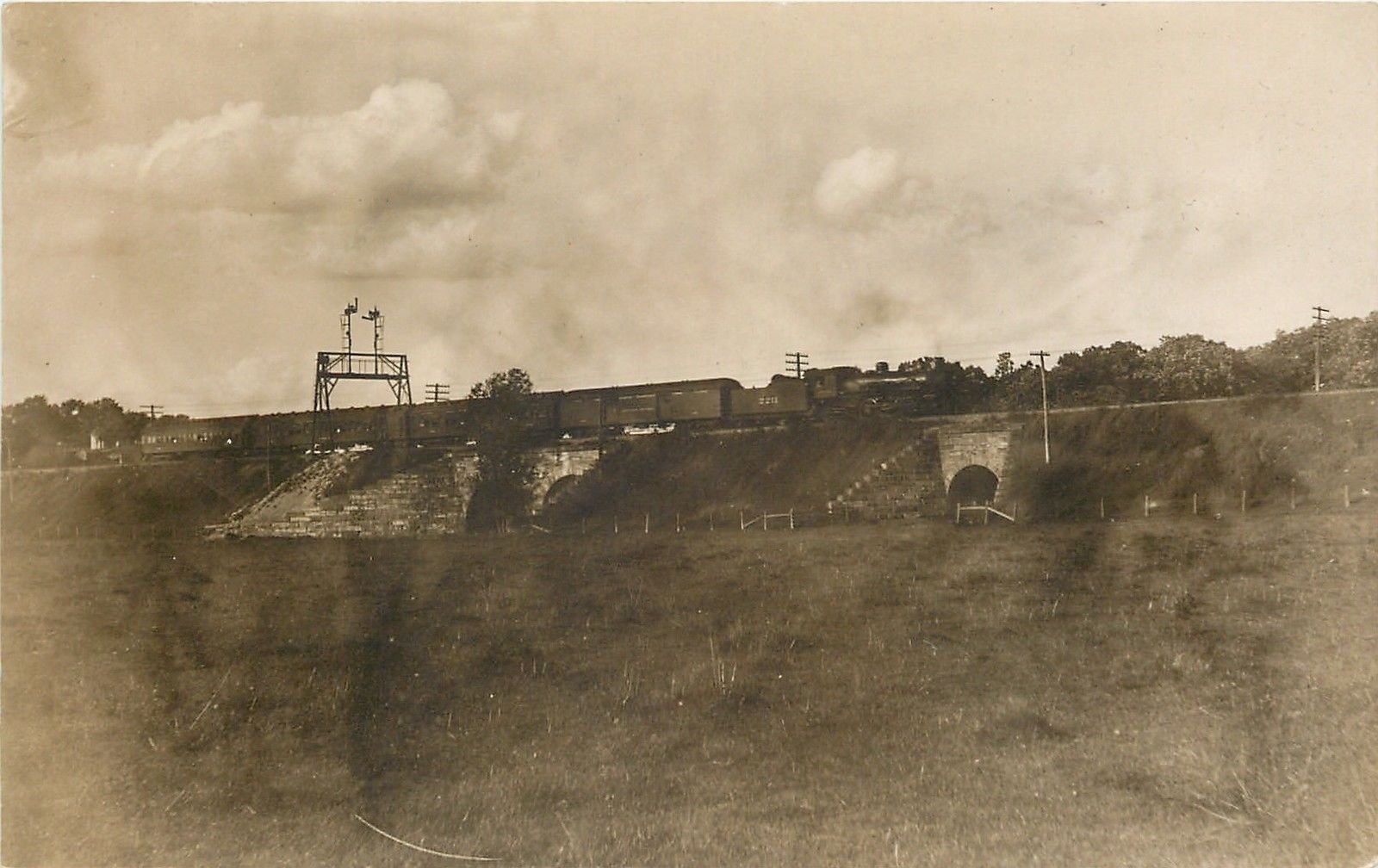

Historic photo of the bridge and nearby Bridge #302

The author has ranked this bridge as being locally significant, due to the common design.
The photo above is an overview. The brush obscures a better overview.

Citations

Source Type

Source

Build Date Date stamp
Build Date Chicago & North Western Railway Historical Society Archives
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
